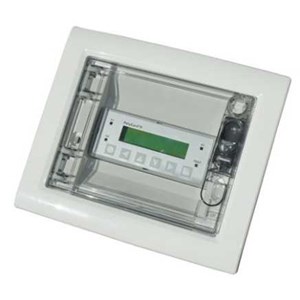

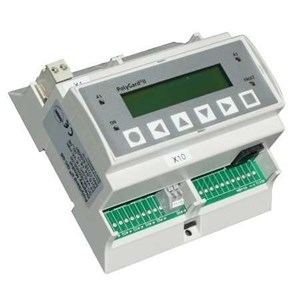

MSR Gas Detection Controller

Descriptions:

MSR Gas Alarm System adalah alat pendeteksi kebocoran gas/kadar gas di dalam suatu ruangan  yang dilengkapi dengan control panel untuk pemantauan secara terus menerus (non-portable).
Keunggulan MSR:
- Bisa mendeteksi semua jenis gas (LPG, Natural Gas, hydrocarbon, H2S, CO2, CO, NO2, O2, dll.)
- Ada sensor dan control panel, jadi pemantauan bisa dilakukan dari ruangan control secara otomatis selama 24 jam sehari.
- Pembacaan nilai kadar gas dalam ruangan dalam satuan LEL/ppm melalui controller
- Sensor berupa catridge yang bisa dilepas untuk memudahkan proses kalibrasi
- Output yang bisa diatur sesuai kebutuhan (buzzer, fan, motorized/solenoid valve)
- Aplikasi produk yang luas, mulai dari building, pabrik, sampai dengan oil dan gas (with ex-proof housing)

Features:

-          For 128 gas sensors, 96 PolyGard®2 digital and/or 32 analog

-          Suitable for toxic, combustible, and refrigerant gases

-          Simple and comfortable commissioning by configuration with standard parameters

-          Up to 32 relays with change-over contact, potential-free

-          Fault relay with normally open contact, potential-free

-          Maximum 16 analog outputs, 4 to 20 mA, with selective signal output for special mode, fault, etc.

-          Up to 7 extension module EP-06 connectable

-          EP modules with integrated repeater function

Specifications:

-          Power supply: 24 V DC ± 20 %

-          Power consumption: 4 W, 150 mA

-          Analog input (4): 4-20 mA – overload and short-circuit protected, input resistance 200 Ω

-          Tension for external analog transmitter: 24 V DC, max 100 mA per sensor

-          Analog output (2, configurable for each input): 4-20 mA – proportional, overload and short-circuit protected, charge ≤ 500 Ω

-          Alarm relay (4): 250 V AC, 5A, potential-free, change-over (SPDT)

-          Fault relay (1): 250 V AC, 5A, potential-free, normally open contact (SPST)

-          LCD: 2 lines, 16 characters each, illuminated

-          Status LED (4): Operation, fault, 1^st alarm, ≥ 2^nd alarm

-          Operation: 6 push buttons

-          Menu language: German, English, Dutch, USA, French, Swedish

-          Interface field bus transceiver: RS 485 / 19200 Baud

-          Humidity: 15-95 % RH non-condensing

-          Working temperature: -5 – +40 °C

-          Enclosure: Plastic housing ABS, IP 40

-          Mounting: Top DIN rail mounting, installation in distribution boxes

-          Dimensions (W x H x D), weight: 104 x 86 x 56 mm, 0.3 kg

-          Wire connection power supply: Screw type terminal, 2.5 mm² (14 AWG)

-          Wire connection output: 2x spring type terminal – min. 0.5 mm², max. 1.5 mm² (22 to 16 AWG)

-          Wire connection input: Spring type – min. 0.5 mm², max. 1.5 mm² (22 to 16 AWG)

-          Directives: EMC Directives 2004/108/EC, low voltage directive 2006/95/EC, EN 50545-1, EN 50271, EN 61010-1:2010, ANSI/UL 61010-1, CAN/CSA-C22.2 No. 61010-1, CE

-          Warranty: 1 year on material



*Please contact for further inquiry.
