Descriptions:

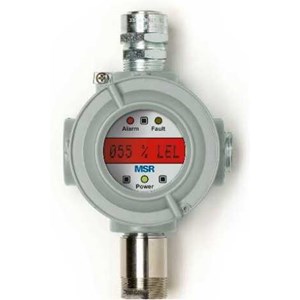

MSR Gas Alarm System adalah alat pendeteksi kebocoran gas/kadar gas di dalam suatu ruangan yang dilengkapi dengan control panel untuk pemantauan secara terus menerus (non-portable).
Keunggulan MSR:
- Bisa mendeteksi semua jenis gas (LPG, Natural Gas, hydrocarbon, H2S, CO2, CO, NO2, O2, dll.)
- Ada sensor dan control panel, jadi pemantauan bisa dilakukan dari ruangan control secara otomatis selama 24 jam sehari.
- Pembacaan nilai kadar gas dalam ruangan dalam satuan LEL/ppm melalui controller
- Sensor berupa catridge yang bisa dilepas untuk memudahkan proses kalibrasi
- Output yang bisa diatur sesuai kebutuhan (buzzer, fan, motorized/solenoid valve)
- Aplikasi produk yang luas, mulai dari building, pabrik, sampai dengan oil dan gas (with ex-proof housing)
Spesifications:
- Gas type / sensor element: Combustible / pellistor (catalytic bead sensor), toxic/electrochemical
- Measuring range: 0-100% LEL
- Respone time: < 20 sec.
- Power Supply: 16-28 V DC, 20-29 V AC
- Power consumption: 90 mA at 24 V, max. 130 mA
- Control unit: Microprocessor with 12 bit converter resolution
- Visual indications: 2 LED for opertional, overload and circuit proof, load < 500
- Serial interface: serial data bus
- Fault relay (optional): max.30V AC/DC, 1A
- Alarm relay (optional): max.30V AC/DC, 1A
- LCD (optional): 2 x 16 characters, 3 status LEDs, 4 menu operating elements
- Humidity: 20-90% RH non-condensing
- Operating temperature: -25 + 55ºC (reduced measuring operation up to up to 65ºC)
- Pressure range: 800-1200mbar
- Air velocity: - Enclosure material / color: Die-cast aluminium / light grey RAL 7032
- Dimensions (d x H ), weight: 95 x 82 mm, ca. 1.3 kg
- Protection class: IP 65
- Mounting: Wall mounting (sensor head downwards)
- Cable entry: 1 x ¾ in.
- Wire connection: Spring-type terminal, 0.08 to 2.25 mm² (AWG 28-12)
- ATEX, IEC Ex approval: CE 0158, II2G Ex demb[ib] IIC T4 (pending)
- Certificates (Electrical Ex protection): Ex demb[ib] EN 60079-0,-1,-11,-18 (zone1), Ex d EN 60079-0,-1 (zone2)
- Certificates (Metrological approval): EN 60079-29-1 for Ex gases (pending)
- Certificates (Functional safety SIL2): EN 50402, EN 61508-1,-2,-3, EN 50271
- Warranty: 1 year on material and workmanship (except for sensor element)
*Please contact for further inquiry.
